产品详情
规格参数
| 护套颜色 | 获得标准 | UL文件NO. | 额定电压 | 耐燃性 |
| 黑、灰、橙、绿 | 非标or UL | 2464/2517 | 300/500V | VW-1 |
移动参数
| 使用温度范围 | 拖链次数(万次) | 拖链最小弯曲半径 | 固定敷设最小弯曲半径 | 最大架空速度 | 最大加速度 |
| -20~+105 | 1000 | 8D | 4D | 3 | 20 |
产品详情
主要特性 |
· 取得美国UL758认证 · 适合小弯曲半径布线 · 中高速首选 · 阻燃性能优 · 带屏蔽，抗干扰性能优越（-SB使用） · Rohs环保对应 |
电缆结构 |

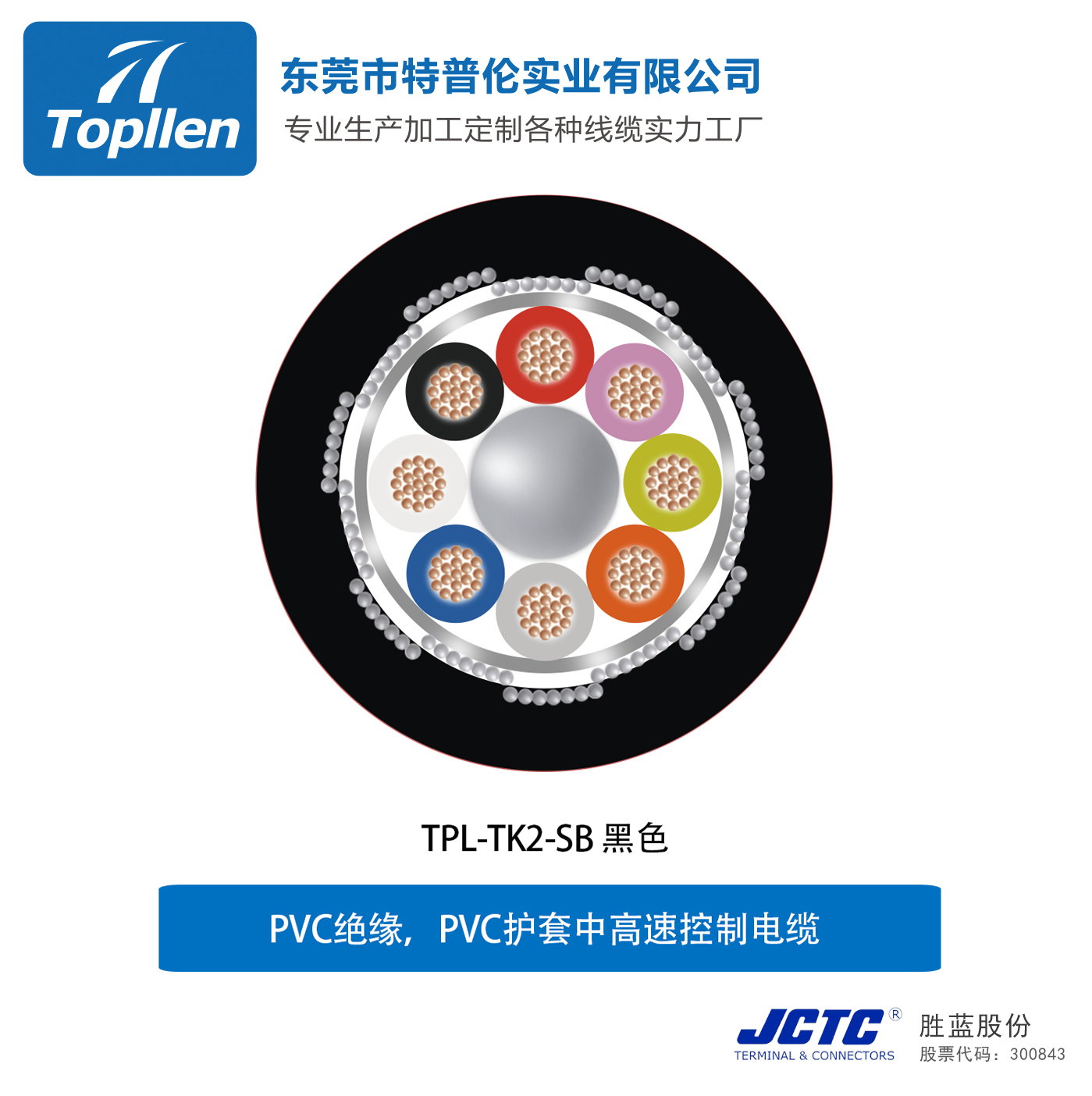

· 采用超细铜丝6类多股绞合导体，柔韧性好 · 耐热柔软PVC阻燃绝缘 · 芯线以优化短节距绞合在一起 · 无纺布绕包 · 镀锡铜编织屏蔽，屏蔽率≥85%（-SB使用） · 耐热柔软PVC阻燃护套 |
产品性能
| 耐长拖链距离 | 柔软性 | 耐候性 | 耐油性 | 耐干扰性 | 耐扭转性 | 耐摇摆性 | 电拖链命测试 | 耐酸碱腐蚀 |
| ★★ | ★★★★ | ★★★ | ★★ | ★★★★ | ★★ | ★★★★ | ★★★ | ★★ |
规 格
产品编号 | 规格(mm²) | 外径(mm) | 重量kg/km | 载流量A(30℃) | 导体电阻Ω/km(20℃) | |
| TK067 | 2C |
0.3 | 4.9 | 40 | 6.6 | 58.3 |
| TK068 | 3C | 5.1 | 46 | 5.5 | 58.3 | |
| TK069 | 4C | 5.4 | 54 | 5.0 | 58.3 | |
| TK070 | 5C | 5.9 | 63 | 4.6 | 58.3 | |
| TK071 | 6C | 6.3 | 72 | 4.3 | 58.3 | |
| TK072 | 8C | 7.2 | 91 | 4.0 | 58.3 | |
| TK073 | 10C | 7.9 | 109 | 3.7 | 58.3 | |
| TK074 | 12C | 8.1 | 120 | 3.4 | 58.3 | |
| TK075 | 16C | 8.8 | 147 | 3.1 | 58.3 | |
| TK076 | 20C | 9.8 | 181 | 2.9 | 58.3 | |
| TK077 | 25C | 10.8 | 216 | 2.7 | 58.3 | |
| TK078 | 2C | 0.5 | 5.5 | 52 | 9.0 | 35.1 |
| TK079 | 3C | 5.9 | 63 | 7.6 | 35.1 | |
| TK080 | 4C | 6.3 | 74 | 6.8 | 35.1 | |
| TK081 | 5C | 6.8 | 85 | 6.3 | 35.1 | |
| TK082 | 6C | 7.3 | 99 | 5.9 | 35.1 | |
| TK083 | 8C | 8.5 | 131 | 5.5 | 35.1 | |
| TK084 | 10C | 9.3 | 156 | 5.1 | 35.1 | |
| TK085 | 12C | 9.6 | 174 | 4.7 | 35.1 | |
| TK086 | 16C | 10.5 | 215 | 4.3 | 35.1 | |
| TK087 | 20C | 11.7 | 264 | 4.0 | 35.1 | |
| TK088 | 25C | 12.9 | 319 | 3.7 | 35.1 | |
| TK089 | 2C |
0.75 | 6.1 | 64 | 11.5 | 23.1 |
| TK090 | 3C | 6.4 | 77 | 9.7 | 23.1 | |
| TK091 | 4C | 6.8 | 93 | 8.7 | 23.1 | |
| TK092 | 5C | 7.6 | 111 | 8.1 | 23.1 | |
| TK093 | 6C | 8.1 | 129 | 7.7 | 23.1 | |
| TK094 | 8C | 9.5 | 170 | 7.1 | 23.1 | |
| TK095 | 10C | 10.2 | 199 | 6.5 | 23.1 | |
| TK096 | 12C | 10.5 | 223 | 6.1 | 23.1 | |
| TK097 | 16C | 11.8 | 283 | 5.5 | 23.1 | |
| TK098 | 20C | 12.9 | 343 | 5.1 | 23.1 | |
| TK099 | 25C | 14.6 | 428 | 4.8 | 23.1 | |
| TK100 | 2C | 1.0 | 7.0 | 82 | 14.0 | 17.9 |
| TK101 | 3C | 7.5 | 102 | 11.8 | 17.9 | |
| TK102 | 4C | 8.1 | 123 | 10.6 | 17.9 | |
| TK103 | 5C | 8.8 | 142 | 9.8 | 17.9 | |
| TK104 | 6C | 9.7 | 171 | 9.3 | 17.9 | |
| TK105 | 8C | 11.1 | 220 | 8.6 | 17.9 | |
| TK106 | 10C | 12.3 | 263 | 8.0 | 17.9 | |
| TK107 | 12C | 12.6 | 295 | 7.4 | 17.9 | |
| TK108 | 16C | 14.3 | 380 | 6.7 | 17.9 | |
| TK109 | 20C | 15.7 | 463 | 6.2 | 17.9 | |
| TK110 | 25C | 17.5 | 567 | 5.8 | 17.9 | |
| TK111 | 2C | 1.5 | 8.0 | 108 | 17.9 | 12.1 |
| TK112 | 3C | 8.5 | 132 | 15.0 | 12.1 | |
| TK113 | 4C | 9.4 | 165 | 13.6 | 12.1 | |
| TK114 | 5C | 10.2 | 191 | 12.6 | 12.1 | |
| TK115 | 6C | 11.0 | 224 | 11.9 | 12.1 | |
| TK116 | 8C | 12.9 | 300 | 11.0 | 12.1 | |
| TK117 | 10C | 14.4 | 364 | 10.2 | 12.1 | |
| TK118 | 12C | 14.8 | 409 | 9.4 | 12.1 | |
| TK119 | 16C | 16.5 | 519 | 8.5 | 12.1 | |
| TK120 | 20C | 18.2 | 633 | 8.0 | 12.1 | |
| TK121 | 25C | 20.1 | 770 | 7.4 | 12.1 | |
| TK122 | 2C |
2.5 | 9.5 | 153 | 24.5 | 7.4 |
| TK123 | 3C | 10.0 | 189 | 20.6 | 7.4 | |
| TK124 | 4C | 10.9 | 233 | 18.5 | 7.4 | |
| TK125 | 5C | 12.1 | 277 | 17.2 | 7.4 | |
| TK126 | 6C | 13.1 | 327 | 16.3 | 7.4 | |
| TK127 | 8C | 15.6 | 445 | 15.0 | 7.4 | |
| TK128 | 10C | 17.1 | 531 | 13.9 | 7.4 | |
| TK129 | 12C | 17.6 | 601 | 12.9 | 7.4 | |
| TK130 | 16C | 19.5 | 755 | 11.6 | 7.4 | |
| TK131 | 20C | 21.5 | 929 | 10.8 | 7.4 | |
| TK132 | 25C | 23.9 | 1134 | 10.1 | 7.4 | |
1.以上表格只列出一部分产品，需要更多规格请联系我们。（C=芯数 P=对绞）
2.以上数字仅为参考值，数字以最终规格书为准。
