产品详情
规格参数
| 护套颜色 | 获得标准 | UL文件NO. | 额定电压 | 耐燃性 |
| 黑、灰、橙、绿 | 非标or UL | 2464 | 300/500V | FT2/VW-1 |
移动参数
| 使用温度范围 | 拖链次数(万次) | 拖链最小弯曲半径 | 固定敷设最小弯曲半径 | 最大架空速度 | 最大加速度 |
| -15~+80 | 500 | 10D | 4D | 2 | 20 |
产品详情
主要特性 |
· 取得美国UL758认证 · 绝缘护套采用超柔软的PVC材料 · 适合于中低速运动场合的电线布线场合 · 带屏蔽，抗干扰性能优越（-SB使用） · Rohs环保对应 |

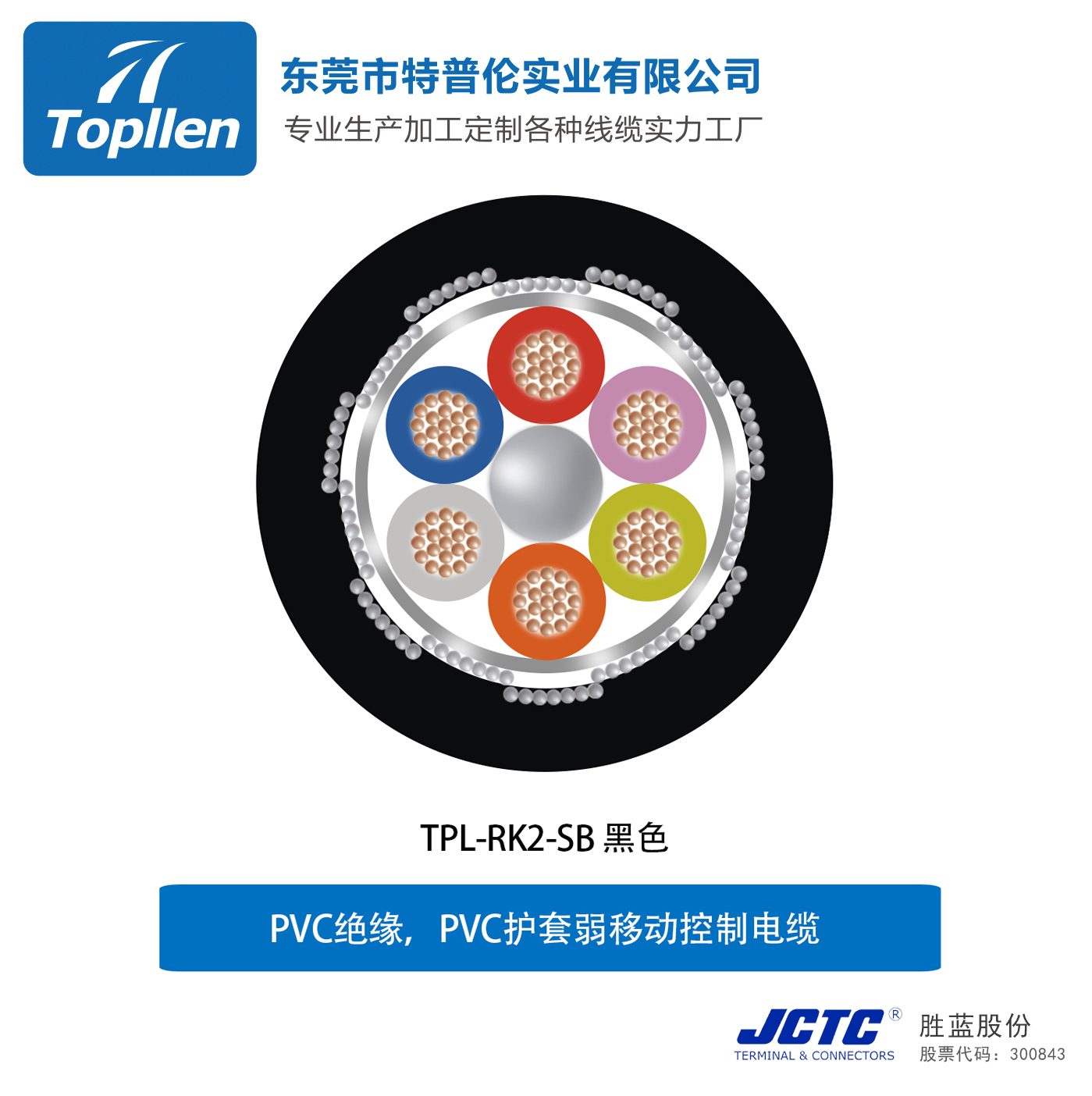

电缆结构 |
· 采用6类多股绞合导体，柔韧性好 · 柔软PVC阻燃绝缘 · 芯线以优化短节距绞合在一起 · 无纺布绕包 · 镀锡铜编织屏蔽，屏蔽率≥85%（-SB使用） · 柔软PVC阻燃护套 |
产品性能
| 耐长拖链距离 | 柔软性 | 耐候性 | 耐油性 | 耐干扰性 | 耐扭转性 | 耐摇摆性 | 电拖链命测试 | 耐酸碱腐蚀 |
| ★ | ★★★★ | ★★ | ★ | ★★★★ | ★ | ★★★ | ★★ | ★ |
规 格
产品编号 | 规格(mm²) | 外径(mm) | 重量kg/km | 载流量A(30℃) | 导体电阻Ω/km(20℃) | |
| RK067 | 2C |
0.3 | 4.9 | 40 | 6.8 | 55.0 |
| RK068 | 3C | 5.1 | 47 | 5.7 | 55.0 | |
| RK069 | 4C | 5.5 | 55 | 5.1 | 55.0 | |
| RK070 | 5C | 6.0 | 64 | 4.8 | 55.0 | |
| RK071 | 6C | 6.4 | 73 | 4.5 | 55.0 | |
| RK072 | 8C | 7.2 | 92 | 4.1 | 55.0 | |
| RK073 | 10C | 7.9 | 111 | 3.8 | 55.0 | |
| RK074 | 12C | 8.1 | 123 | 3.5 | 55.0 | |
| RK075 | 16C | 8.9 | 150 | 3.2 | 55.0 | |
| RK076 | 20C | 9.9 | 184 | 3.0 | 55.0 | |
| RK077 | 25C | 10.9 | 220 | 2.8 | 55.0 | |
| RK078 | 2C | 0.5 | 5.5 | 51 | 8.8 | 35.9 |
| RK079 | 3C | 5.8 | 61 | 7.5 | 35.9 | |
| RK080 | 4C | 6.3 | 73 | 6.7 | 35.9 | |
| RK081 | 5C | 6.7 | 84 | 6.2 | 35.9 | |
| RK082 | 6C | 7.2 | 97 | 5.9 | 35.9 | |
| RK083 | 8C | 8.4 | 127 | 5.4 | 35.9 | |
| RK084 | 10C | 9.3 | 153 | 5.0 | 35.9 | |
| RK085 | 12C | 9.5 | 170 | 4.7 | 35.9 | |
| RK086 | 16C | 10.4 | 209 | 4.2 | 35.9 | |
| RK087 | 20C | 11.6 | 258 | 3.9 | 35.9 | |
| RK088 | 25C | 12.7 | 310 | 3.7 | 35.9 | |
| RK089 | 2C |
0.75 | 6.0 | 63 | 11.3 | 23.9 |
| RK090 | 3C | 6.3 | 75 | 9.5 | 23.9 | |
| RK091 | 4C | 6.8 | 90 | 8.5 | 23.9 | |
| RK092 | 5C | 7.3 | 104 | 7.9 | 23.9 | |
| RK093 | 6C | 8.1 | 125 | 7.5 | 23.9 | |
| RK094 | 8C | 9.4 | 164 | 6.9 | 23.9 | |
| RK095 | 10C | 10.1 | 192 | 6.4 | 23.9 | |
| RK096 | 12C | 10.4 | 215 | 5.9 | 23.9 | |
| RK097 | 16C | 11.6 | 272 | 5.4 | 23.9 | |
| RK098 | 20C | 12.7 | 331 | 5.0 | 23.9 | |
| RK099 | 25C | 14.4 | 413 | 4.7 | 23.9 | |
| RK100 | 2C | 1.0 | 7.0 | 81 | 13.9 | 18.1 |
| RK101 | 3C | 7.5 | 101 | 11.7 | 18.1 | |
| RK102 | 4C | 8.1 | 122 | 10.5 | 18.1 | |
| RK103 | 5C | 8.8 | 140 | 9.7 | 18.1 | |
| RK104 | 6C | 9.7 | 168 | 9.2 | 18.1 | |
| RK105 | 8C | 11.1 | 219 | 8.5 | 18.1 | |
| RK106 | 10C | 12.2 | 261 | 7.9 | 18.1 | |
| RK107 | 12C | 12.6 | 292 | 7.3 | 18.1 | |
| RK108 | 16C | 14.2 | 377 | 6.6 | 18.1 | |
| RK109 | 20C | 15.6 | 459 | 6.2 | 18.1 | |
| RK110 | 25C | 17.5 | 562 | 5.8 | 18.1 | |
| RK111 | 2C | 1.5 | 8.1 | 110 | 18.2 | 11.8 |
| RK112 | 3C | 8.5 | 134 | 15.3 | 11.8 | |
| RK113 | 4C | 9.4 | 168 | 13.8 | 11.8 | |
| RK114 | 5C | 10.2 | 195 | 12.8 | 11.8 | |
| RK115 | 6C | 11.1 | 228 | 12.1 | 11.8 | |
| RK116 | 8C | 13.0 | 305 | 11.2 | 11.8 | |
| RK117 | 10C | 14.5 | 370 | 10.4 | 11.8 | |
| RK118 | 12C | 14.9 | 416 | 9.6 | 11.8 | |
| RK119 | 16C | 16.7 | 538 | 8.7 | 11.8 | |
| RK120 | 20C | 18.4 | 656 | 8.1 | 11.8 | |
| RK121 | 25C | 20.3 | 794 | 7.6 | 11.8 | |
| RK122 | 2C |
2.5 | 9.5 | 154 | 24.6 | 7.4 |
| RK123 | 3C | 10.0 | 189 | 20.6 | 7.4 | |
| RK124 | 4C | 10.9 | 233 | 18.5 | 7.4 | |
| RK125 | 5C | 12.1 | 278 | 17.2 | 7.4 | |
| RK126 | 6C | 13.1 | 327 | 16.3 | 7.4 | |
| RK127 | 8C | 15.6 | 454 | 15.0 | 7.4 | |
| RK128 | 10C | 17.2 | 541 | 13.9 | 7.4 | |
| RK129 | 12C | 17.7 | 612 | 12.9 | 7.4 | |
| RK130 | 16C | 19.5 | 767 | 11.7 | 7.4 | |
| RK131 | 20C | 21.6 | 943 | 10.9 | 7.4 | |
| RK132 | 25C | 24.0 | 1148 | 10.1 | 7.4 | |
1.以上表格只列出一部分产品，需要更多规格请联系我们。（C=芯数 P=对绞）
2.以上数字仅为参考值，数字以最终规格书为准。
