规格参数
| 护套颜色 | 获得标准 | UL文件NO. | 额定电压 | 耐燃性 |
| 黑 | 非标or UL | 20276 | 30V | VW-1 |
移动参数
| 使用温度范围 | 拖链次数(万次) | 拖链最小弯曲半径 | 固定敷设最小弯曲半径 | 最大架空速度 | 最大加速度 |
| -20+105 | 1000 | 6D | 4D | 3 | 30 |
产品详情
主要特性 |
· 取得美国UL758认证 · 护套采用日本柔软改性PVC护套，耐油、耐磨 · 适合机床等油污腐蚀严重的环境 · 中高速首选 · 阻燃性能优 · 带屏蔽，抗干扰性能优越（-SB使用） · Rohs环保对应 |
电缆结构 |

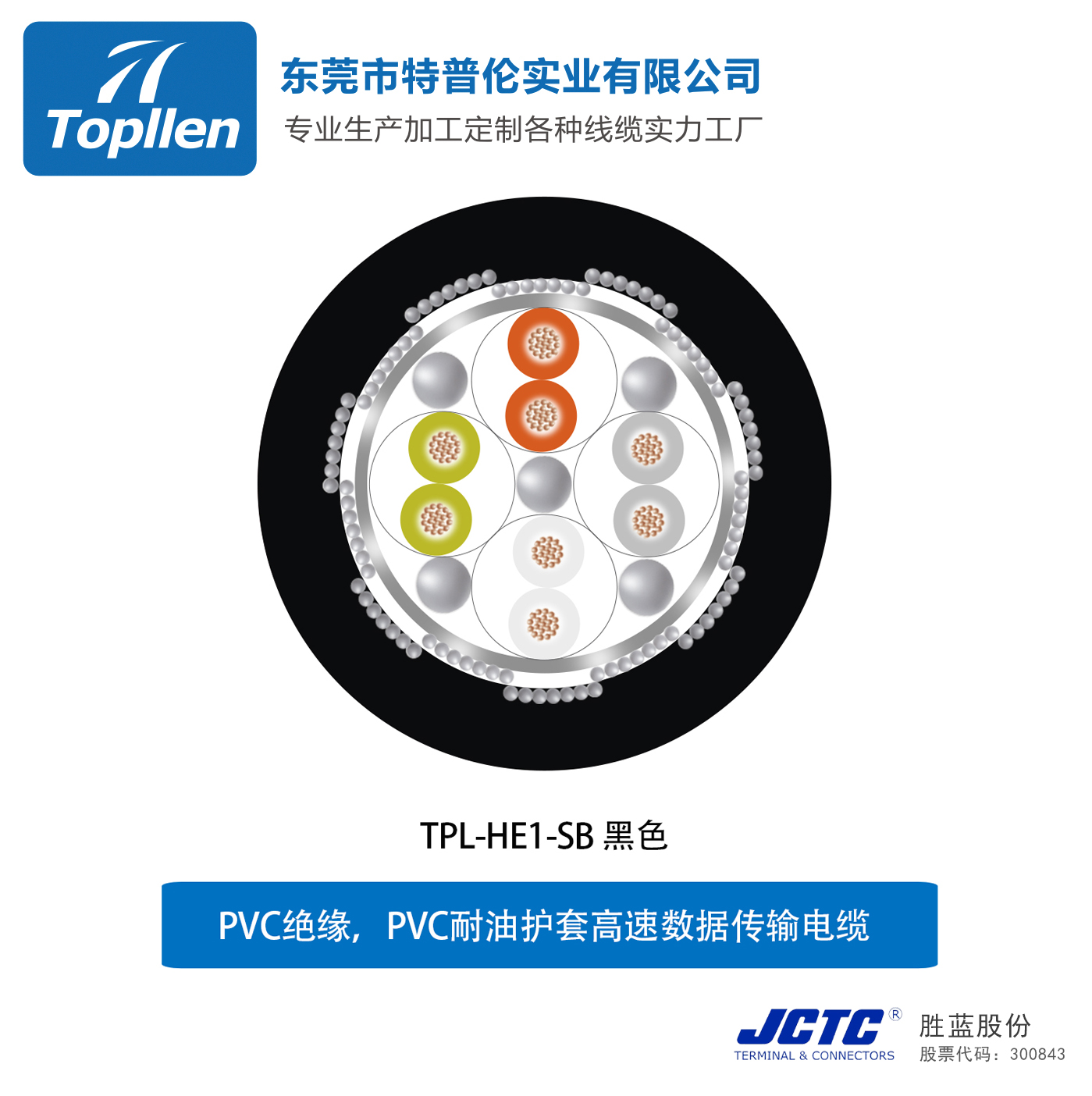

· 采用超细铜丝6类多股绞合导体，柔韧性好 · 耐热柔软PVC阻燃绝缘 · 每两根芯线以短节距对绞，再将所有对绞线以短节距围 绕高强度中心线绞合在一起 · 无纺布绕包 · 镀锡铜编织屏蔽，屏蔽率≥85%（-SB使用） · 改性PVC阻燃护套 |
产品性能
| 耐长拖链距离 | 柔软性 | 耐候性 | 耐油性 | 耐干扰性 | 耐扭转性 | 耐摇摆性 | 电拖链命测试 | 耐酸碱腐蚀 |
| ★★★ | ★★★★ | ★★★ | ★★★★★ | ★★★★ | ★★ | ★★★★ | ★★★ | ★★★ |
规 格
产品编号 | 规格(mm²) | 外径(mm) | 重量kg/km | 载流量A(30℃) | 导体电阻Ω/km(20℃) | |
| HE031 | 2C | 0.14 | 3.4 | 21 | 3.9 | 126.3 |
| HE032 | 3C | 3.7 | 25 | 3.3 | 126.3 | |
| HE033 | 4C | 3.9 | 29 | 3.0 | 126.3 | |
| HE034 | 5C | 4.1 | 32 | 2.7 | 126.3 | |
| HE035 | 6C | 4.4 | 37 | 2.6 | 126.3 | |
| HE036 | 8C | 5.0 | 46 | 2.2 | 126.3 | |
| HE037 | 10C | 5.4 | 54 | 2.2 | 126.3 | |
| HE038 | 12C | 5.8 | 62 | 2.0 | 126.3 | |
| HE039 | 20C | 7.0 | 93 | 1.7 | 126.3 | |
| HE040 | 25C | 7.6 | 110 | 1.6 | 126.3 | |
| HE041 | 2C |
0.2 | 3.7 | 25 | 4.7 | 92.4 |
| HE042 | 3C | 3.8 | 28 | 4.0 | 92.4 | |
| HE043 | 4C | 4.1 | 33 | 3.5 | 92.4 | |
| HE044 | 5C | 4.4 | 37 | 3.3 | 92.4 | |
| HE045 | 6C | 4.7 | 43 | 3.1 | 92.4 | |
| HE046 | 8C | 5.4 | 55 | 2.9 | 92.4 | |
| HE047 | 10C | 6.0 | 66 | 2.7 | 92.4 | |
| HE048 | 12C | 6.3 | 76 | 2.5 | 92.4 | |
| HE049 | 20C | 7.5 | 110 | 2.1 | 92.4 | |
| HE050 | 25C | 7.6 | 122 | 1.9 | 92.4 | |
| HE051 | 2C |
0.25 | 3.8 | 27 | 5.3 | 75.8 |
| HE052 | 3C | 4.0 | 31 | 4.4 | 75.8 | |
| HE053 | 4C | 4.2 | 36 | 4.0 | 75.8 | |
| HE054 | 5C | 4.5 | 41 | 3.7 | 75.8 | |
| HE055 | 6C | 5.0 | 49 | 3.5 | 75.8 | |
| HE056 | 8C | 5.8 | 64 | 3.2 | 75.8 | |
| HE057 | 10C | 6.4 | 77 | 3.0 | 75.8 | |
| HE058 | 12C | 6.6 | 85 | 2.8 | 75.8 | |
| HE059 | 20C | 7.8 | 123 | 2.3 | 75.8 | |
| HE060 | 25C | 8.5 | 147 | 2.2 | 75.8 | |
产品编号 | 规格(mm²) | 外径(mm) | 重量kg/km | 载流量A(30℃) | 导体电阻Ω/km(20℃) | |
| HE061 | 2P | 0.14 | 4.8 | 37 | 3.2 | 126.3 |
| HE062 | 3P | 5.0 | 43 | 2.7 | 126.3 | |
| HE063 | 4P | 5.5 | 52 | 2.4 | 126.3 | |
| HE064 | 5P | 5.9 | 59 | 2.3 | 126.3 | |
| HE065 | 6P | 6.5 | 70 | 2.2 | 126.3 | |
| HE066 | 8P | 7.7 | 94 | 2.0 | 126.3 | |
| HE067 | 10P | 8.2 | 107 | 1.8 | 126.3 | |
| HE068 | 12P | 8.5 | 119 | 1.7 | 126.3 | |
| HE069 | 14P | 8.9 | 132 | 1.6 | 126.3 | |
| HE070 | 20P | 10.4 | 179 | 1.5 | 126.3 | |
| HE071 | 2P |
0.2 | 5.1 | 43 | 3.9 | 92.4 |
| HE072 | 3P | 5.3 | 50 | 3.3 | 92.4 | |
| HE073 | 4P | 5.8 | 61 | 2.9 | 92.4 | |
| HE074 | 5P | 6.3 | 69 | 2.7 | 92.4 | |
| HE075 | 6P | 6.9 | 82 | 2.6 | 92.4 | |
| HE076 | 8P | 8.2 | 110 | 2.4 | 92.4 | |
| HE077 | 10P | 8.7 | 125 | 2.2 | 92.4 | |
| HE078 | 12P | 9.1 | 141 | 2.1 | 92.4 | |
| HE079 | 14P | 9.5 | 157 | 2.0 | 92.4 | |
| HE080 | 20P | 11.2 | 214 | 1.7 | 92.4 | |
| HE081 | 2P |
0.25 | 5.4 | 48 | 4.4 | 75.8 |
| HE082 | 3P | 5.6 | 56 | 3.7 | 75.8 | |
| HE083 | 4P | 6.1 | 67 | 3.3 | 75.8 | |
| HE084 | 5P | 6.6 | 77 | 3.1 | 75.8 | |
| HE085 | 6P | 7.2 | 91 | 2.9 | 75.8 | |
| HE086 | 8P | 8.5 | 121 | 2.7 | 75.8 | |
| HE087 | 10P | 9.2 | 140 | 2.5 | 75.8 | |
| HE088 | 12P | 9.5 | 158 | 2.3 | 75.8 | |
| HE089 | 14P | 10.0 | 176 | 2.2 | 75.8 | |
| HE090 | 20P | 11.7 | 240 | 2.0 | 75.8 | |
| HE091 | 2P | 0.3 | 5.6 | 52 | 4.9 | 63.2 |
| HE092 | 3P | 5.9 | 62 | 4.1 | 63.2 | |
| HE093 | 4P | 6.3 | 74 | 3.7 | 63.2 | |
| HE094 | 5P | 6.9 | 85 | 3.4 | 63.2 | |
| HE095 | 6P | 7.5 | 100 | 3.3 | 63.2 | |
| HE096 | 8P | 9.0 | 137 | 3.0 | 63.2 | |
| HE097 | 10P | 9.7 | 158 | 2.8 | 63.2 | |
| HE098 | 12P | 10.1 | 181 | 2.6 | 63.2 | |
| HE099 | 14P | 10.6 | 202 | 2.5 | 63.2 | |
| HE100 | 20P | 12.5 | 276 | 2.2 | 63.2 | |
| HE101 | 2P | 0.5 | 6.7 | 76 | 7.1 | 35.1 |
| HE102 | 3P | 7.1 | 92 | 6.0 | 35.1 | |
| HE103 | 4P | 7.8 | 113 | 5.4 | 35.1 | |
| HE104 | 5P | 8.5 | 131 | 5.0 | 35.1 | |
| HE105 | 6P | 9.5 | 161 | 4.8 | 35.1 | |
| HE106 | 8P | 11.2 | 215 | 4.4 | 35.1 | |
| HE107 | 10P | 12.3 | 257 | 3.8 | 35.1 | |
| HE108 | 12P | 12.7 | 288 | 3.8 | 35.1 | |
| HE109 | 14P | 13.3 | 324 | 3.6 | 35.1 | |
| HE110 | 20P | 15.7 | 445 | 3.2 | 35.1 | |
1.以上表格只列出一部分产品，需要更多规格请联系我们。（C=芯数 P=对绞）
2.以上数字仅为参考值，数字以最终规格书为准。
