规格参数
| 护套颜色 | 获得标准 | UL文件NO. | 额定电压 | 耐燃性 |
| 黑、灰、橙、绿 | 非标or UL | 20276 | 30V | FT2/VW-1 |
移动参数
| 使用温度范围 | 拖链次数(万次) | 拖链最小弯曲半径 | 固定敷设最小弯曲半径 | 最大架空速度 | 最大加速度 |
| -15~+80 | 200 | - | 4D | 0 | 0 |
产品详情
主要特性 |
· 取得美国UL758认证 · 采用5、6类绞合导体 · 适合于非运动场合的电线布线场合 · 适合机床等油污腐蚀严重的环境 · 带屏蔽，抗干扰性能优越（-SB使用） · Rohs环保对应 |

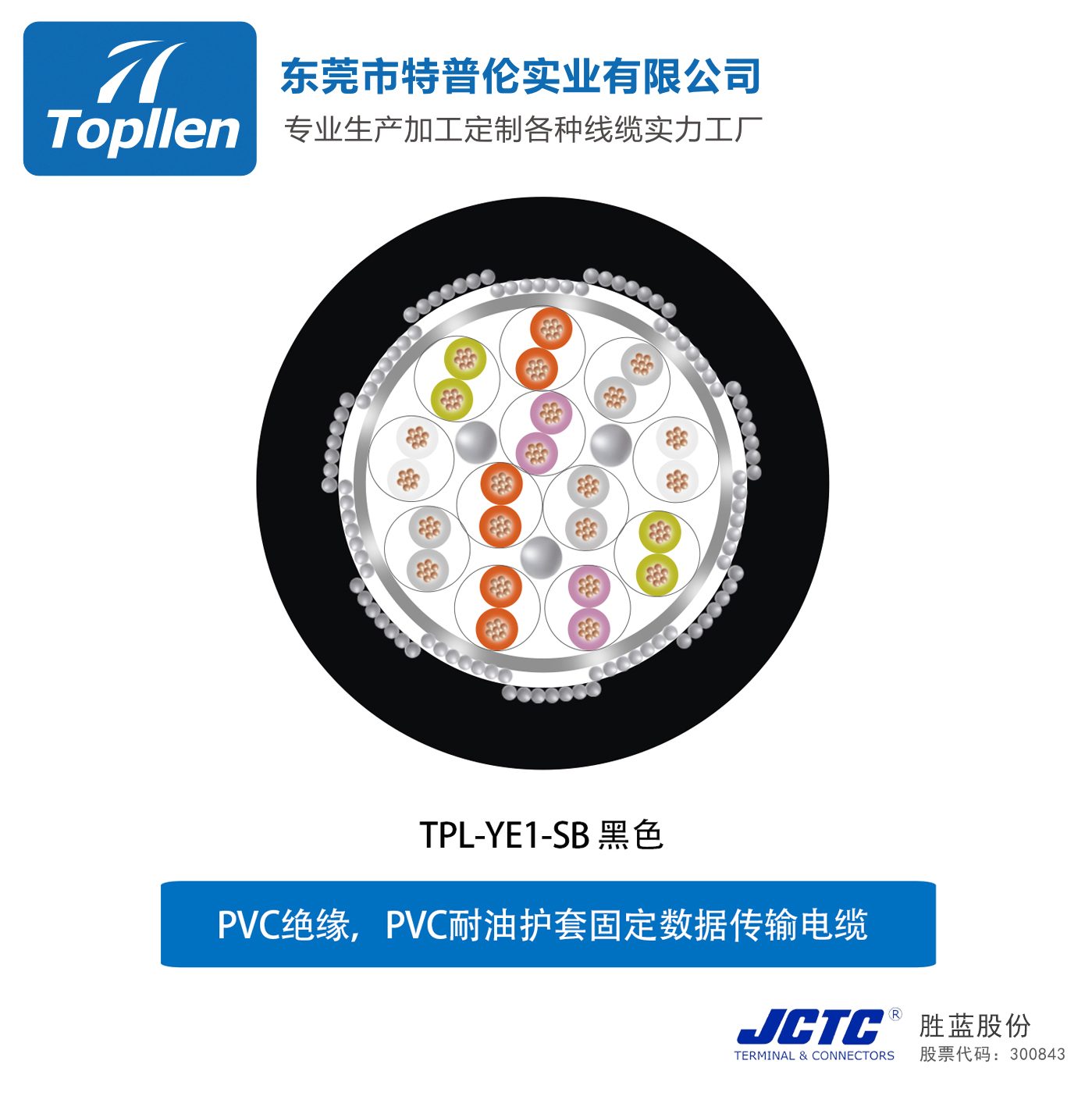

电缆结构 |
· 采用5、6类多股绞合导体 · PVC阻燃绝缘 · 每两根芯线以短节距对绞，再将所有对绞线以短节距围 绕高强度中心线绞合在一起 · 无纺布绕包 · 镀锡铜编织屏蔽，屏蔽率≥85%（-SB使用） · 耐油PVC阻燃护套 |
产品性能
| 耐长拖链距离 | 柔软性 | 耐候性 | 耐油性 | 耐干扰性 | 耐扭转性 | 耐摇摆性 | 电拖链命测试 | 耐酸碱腐蚀 |
| ★ | ★★ | ★★ | ★★★★★ | ★★★★ | ★ | ★★ | ★ | ★★★ |
规 格
产品编号 | 规格(mm²) | 外径(mm) | 重量kg/km | 载流量A(30℃) | 导体电阻Ω/km(20℃) | |
| YE031 | 2C | 0.14 | 3.4 | 20 | 3.8 | 132.6 |
| YE032 | 3C | 3.6 | 24 | 3.2 | 132.6 | |
| YE033 | 4C | 3.8 | 28 | 2.9 | 132.6 | |
| YE034 | 5C | 4.1 | 31 | 2.7 | 132.6 | |
| YE035 | 6C | 4.4 | 36 | 2.5 | 132.6 | |
| YE036 | 8C | 4.6 | 42 | 2.2 | 132.6 | |
| YE037 | 10C | 5.4 | 52 | 2.1 | 132.6 | |
| YE038 | 12C | 5.7 | 60 | 2.0 | 132.6 | |
| YE039 | 20C | 6.9 | 89 | 1.7 | 132.6 | |
| YE040 | 25C | 7.5 | 105 | 1.6 | 132.6 | |
| YE041 | 2C |
0.2 | 3.7 | 25 | 5.0 | 84.4 |
| YE042 | 3C | 3.9 | 29 | 4.2 | 84.4 | |
| YE043 | 4C | 4.1 | 34 | 3.7 | 84.4 | |
| YE044 | 5C | 4.4 | 38 | 3.5 | 84.4 | |
| YE045 | 6C | 4.7 | 44 | 3.3 | 84.4 | |
| YE046 | 8C | 5.1 | 54 | 2.9 | 84.4 | |
| YE047 | 10C | 6.1 | 68 | 2.8 | 84.4 | |
| YE048 | 12C | 6.4 | 79 | 2.6 | 84.4 | |
| YE049 | 20C | 7.6 | 114 | 2.2 | 84.4 | |
| YE050 | 25C | 7.7 | 125 | 2.0 | 84.4 | |
| YE051 | 2C |
0.25 | 3.8 | 27 | 5.5 | 71.4 |
| YE052 | 3C | 4.0 | 31 | 4.6 | 71.4 | |
| YE053 | 4C | 4.3 | 37 | 4.1 | 71.4 | |
| YE054 | 5C | 4.6 | 42 | 3.8 | 71.4 | |
| YE055 | 6C | 5.0 | 49 | 3.6 | 71.4 | |
| YE056 | 8C | 5.5 | 62 | 3.3 | 71.4 | |
| YE057 | 10C | 6.5 | 78 | 3.1 | 71.4 | |
| YE058 | 12C | 6.6 | 86 | 2.9 | 71.4 | |
| YE059 | 20C | 7.9 | 126 | 2.4 | 71.4 | |
| YE060 | 25C | 8.5 | 149 | 2.3 | 71.4 | |
产品编号 | 规格(mm²) | 外径(mm) | 重量kg/km | 载流量A(30℃) | 导体电阻Ω/km(20℃) | |
| YE061 | 2P | 0.14 | 4.7 | 36 | 3.1 | 132.6 |
| YE062 | 3P | 5.0 | 42 | 2.6 | 132.6 | |
| YE063 | 4P | 5.4 | 51 | 2.4 | 132.6 | |
| YE064 | 5P | 5.9 | 57 | 2.2 | 132.6 | |
| YE065 | 6P | 6.4 | 67 | 2.1 | 132.6 | |
| YE066 | 8P | 7.1 | 86 | 1.9 | 132.6 | |
| YE067 | 10P | 8.1 | 103 | 1.8 | 132.6 | |
| YE068 | 12P | 8.4 | 115 | 1.7 | 132.6 | |
| YE069 | 14P | 8.8 | 128 | 1.6 | 132.6 | |
| YE070 | 20P | 10.3 | 172 | 1.4 | 132.6 | |
| YE071 | 2P |
0.2 | 5.1 | 44 | 4.1 | 84.4 |
| YE072 | 3P | 5.4 | 51 | 3.4 | 84.4 | |
| YE073 | 4P | 5.9 | 63 | 3.1 | 84.4 | |
| YE074 | 5P | 6.4 | 72 | 2.9 | 84.4 | |
| YE075 | 6P | 7.0 | 84 | 2.7 | 84.4 | |
| YE076 | 8P | 7.8 | 108 | 2.5 | 84.4 | |
| YE077 | 10P | 8.9 | 130 | 2.3 | 84.4 | |
| YE078 | 12P | 9.2 | 146 | 2.2 | 84.4 | |
| YE079 | 14P | 9.7 | 163 | 2.1 | 84.4 | |
| YE080 | 20P | 11.4 | 223 | 1.8 | 84.4 | |
| YE081 | 2P |
0.25 | 5.4 | 49 | 4.5 | 71.4 |
| YE082 | 3P | 5.7 | 57 | 3.8 | 71.4 | |
| YE083 | 4P | 6.1 | 68 | 3.4 | 71.4 | |
| YE084 | 5P | 6.7 | 78 | 3.2 | 71.4 | |
| YE085 | 6P | 7.3 | 92 | 3.0 | 71.4 | |
| YE086 | 8P | 8.0 | 117 | 2.7 | 71.4 | |
| YE087 | 10P | 9.2 | 143 | 2.6 | 71.4 | |
| YE088 | 12P | 9.6 | 161 | 2.4 | 71.4 | |
| YE089 | 14P | 10.1 | 180 | 2.3 | 71.4 | |
| YE090 | 20P | 11.8 | 246 | 2.0 | 71.4 | |
| YE091 | 2P | 0.3 | 5.7 | 55 | 5.3 | 54.6 |
| YE092 | 3P | 6.0 | 66 | 4.5 | 54.6 | |
| YE093 | 4P | 6.5 | 79 | 4.0 | 54.6 | |
| YE094 | 5P | 7.1 | 91 | 3.7 | 54.6 | |
| YE095 | 6P | 7.8 | 108 | 3.6 | 54.6 | |
| YE096 | 8P | 8.6 | 139 | 3.2 | 54.6 | |
| YE097 | 10P | 10.0 | 170 | 3.1 | 54.6 | |
| YE098 | 12P | 10.5 | 195 | 2.8 | 54.6 | |
| YE099 | 14P | 11.0 | 218 | 2.7 | 54.6 | |
| YE100 | 20P | 12.9 | 298 | 2.4 | 54.6 | |
| YE101 | 2P | 0.5 | 6.3 | 69 | 6.9 | 35.7 |
| YE102 | 3P | 6.7 | 84 | 5.8 | 35.7 | |
| YE103 | 4P | 7.3 | 104 | 5.2 | 35.7 | |
| YE104 | 5P | 8.0 | 120 | 4.9 | 35.7 | |
| YE105 | 6P | 8.9 | 147 | 4.6 | 35.7 | |
| YE106 | 8P | 9.6 | 182 | 4.2 | 35.7 | |
| YE107 | 10P | 11.4 | 229 | 4.0 | 35.7 | |
| YE108 | 12P | 11.9 | 262 | 3.7 | 35.7 | |
| YE109 | 14P | 12.5 | 296 | 3.5 | 35.7 | |
| YE110 | 20P | 14.6 | 404 | 3.1 | 35.7 | |
1.以上表格只列出一部分产品，需要更多规格请联系我们。（C=芯数 P=对绞）
2.以上数字仅为参考值，数字以最终规格书为准。
